👗 VietFashion: Benchmarking Sketch-Text Composed Image Retrieval for Cultural Garments (ACCEPTED AT ACM ICMR 2026 - B Rank Conference)

Official repository for VietFashion, a comprehensive pipeline for synthesizing high-quality triplet datasets (sketch-text-image) specifically for cultural garments. We address the data scarcity bottleneck in Composed Image Retrieval (CIR) by leveraging state-of-the-art generative models to produce 20,000 curated triplets of the Vietnamese áo dài.

📋 Overview

This research project presents a novel pipeline combining SANA-ControlNet for high-fidelity sketch-conditioned image synthesis with Qwen2.5 3B Instruct for semantic caption generation. We address the critical challenge of obtaining diverse, high-quality training data for specialized domains like cultural garments. Our approach automates the entire triplet synthesis workflow, eliminating manual annotation and producing a large-scale, multi-modal dataset suitable for training and evaluation of composed image retrieval systems.

🎯 Motivation

Composed image retrieval (CIR) is the task of finding images in a database based on a query combining a reference image with text modifications. However, obtaining diverse, high-quality training data remains a significant bottleneck, particularly for specialized domains like cultural garments where data is scarce.

This project addresses this challenge by:

• Automating triplet generation from human-drawn sketch inputs, eliminating manual annotation requirements
• Leveraging SANA-ControlNet to synthesize photorealistic, culturally accurate garment images conditioned on spatial sketches
• Utilizing Qwen2.5 3B Instruct to generate consistent, attribute-rich captions starting with “A photo of…”
• Modeling real-world uncertainty via a Multi-Target Query Design ($1 \rightarrow 3$ mapping) that addresses false-negative supervision in composed retrieval
• Producing large-scale datasets (20,000 triplets) that enable training of robust CIR models for cultural garment applications

🔧 Technical Approach

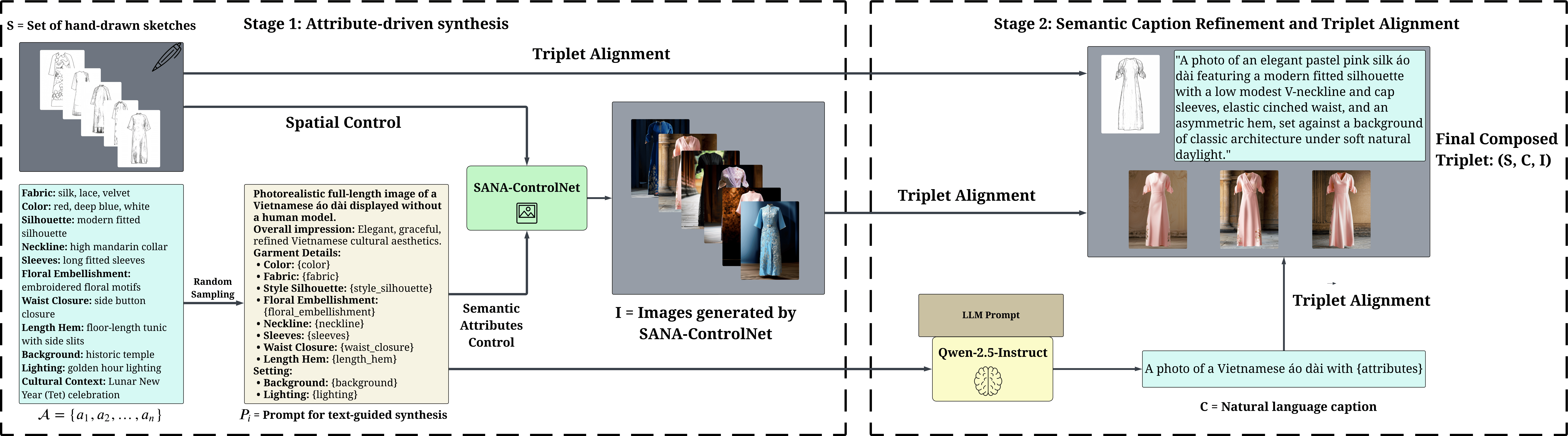

The Synthesis Pipeline

Our pipeline follows a structured flow from abstract sketch input to aligned multi-modal triplets:

Key Components

1. Attribute Sampling
   • 11 curated categories from fashion archives: Fabric, Silhouette, Neckline, Sleeve Style, Color, Pattern, Embroidery, Fit, Length, Collar Type, and Ornamental Details
   • Structured sampling ensures diverse, culturally authentic garment representations
   • Maintains semantic consistency across triplets
2. Image Synthesis (SANA-ControlNet)
   • Generates high-quality garment images conditioned on sketch inputs and structured prompts
   • Spatial control via ControlNet ensures sketch-image semantic alignment
   • Produces diverse variations suitable for CIR training with photorealistic details
   • Maintains cultural authenticity while adding photorealistic rendering
3. Caption Generation (Qwen2.5 3B Instruct)
   • Distills the attribute set into neutral, factual single-sentence captions
   • All captions follow the format: “A photo of [garment description]…”
   • Captures essential attributes (style, color, fit, cultural elements) comprehensively
   • Produces descriptions that complement sketch-image pairs for robust triplet learning
4. Triplet Formation & Multi-Target Query Design
   • Aggregates Sketch (S), Caption (C), and Multiple Target Images (I₁, I₂, I₃) into final dataset entries
   • One-to-Three mapping ($1 \rightarrow 3$) explicitly addresses false-negative supervision in CIR
   • Provides multiple valid targets for each query, reflecting real-world retrieval scenarios
   • Creates balanced datasets with diverse cultural garment categories

📊 Dataset

Dataset Statistics

• Total Triplets: 20,000 curated sketch-text-image triplets
• Human Sketches: 650 unique human-drawn query sketches
• Synthesized Images: 21,000 high-resolution fashion renderings (3 per triplet)
• Domain: Vietnamese Cultural Garments (Áo Dài and related traditional clothing)
• Format: JSON-based annotations with split support (train.json, val.json, test.json)
• Modalities: Sketch, Image, Text with explicit one-to-three mapping

Data Organization

• Triplet Format: Each entry contains (Sketch S, Caption C, Image₁ I₁, Image₂ I₂, Image₃ I₃)
• Splits: Training, validation, and test sets with balanced class distributions
• Annotations: JSON files in aodai/captions/ directory with image-sketch mapping files
• Image Quality: High-resolution photorealistic renderings suitable for deep learning models

📁 Project Structure

BM_ICMR2026/
├── generation/              # Image and caption generation pipeline
│   ├── sana_inference.py   # Single image synthesis script
│   ├── sana_inference_multi.py  # Batch synthesis script
│   ├── Sana/               # SANA model repository
│   ├── prompts_ao_dai.json # Generation prompts
│   └── features.json       # Feature storage
│
├── notebook/               # Jupyter notebooks for analysis
│   └── Qwen2.5_captions.ipynb  # Caption generation notebook
│
├── aodai/                  # Dataset directory
│   ├── origin.json         # Original sketch-text pairs
│   ├── output_triplet.json # Generated triplets
│   ├── train.json, test.json, val.json  # Split annotations
│   ├── captions/           # Caption data
│   │   ├── cap.train.json, cap.test.json, cap.val.json
│   │   └── triplet.json    # Final triplet annotations
│   ├── images/             # Synthesized garment images
│   ├── sketches/           # Input sketches
│   └── images_split/       # Image-sketch mapping files
│
├── benchmark/              # Evaluation benchmarks
│   ├── Bi-Blip4CIR/        # BliP-based CIR model
│   ├── CLIP4Cir/           # CLIP-based CIR model
│   ├── pic2word/           # Picture-to-word baseline
│   └── SEARLE/             # SEARLE benchmark
│
├── generated/              # Final outputs
│   ├── output_triplet_final.json      # Final triplet dataset
│   └── outputs_ao_dai_caption_refined.json
│
├── metric.py               # Evaluation metrics
├── process_triplets.py     # Triplet processing utilities
├── triplet.py              # Triplet data structures
├── requirements.txt        # Python dependencies
└── README.md              # This file

🚀 Getting Started

Requirements

• Python 3.8+
• PyTorch 2.0+
• CUDA 11.8+ (for GPU acceleration)
• See requirements.txt for complete dependency list

Installation

1. Clone the repository and install dependencies

   cd BM_ICMR2026
   pip install -r requirements.txt


2. Setup SANA model (if generating new images)

   cd generation/Sana
   # Follow SANA installation instructions in generation/Sana/README.md


3. Prepare input data

   # Ensure sketches are in aodai/sketches/
   # Ensure prompts are configured in generation/prompts_ao_dai.json


📝 Usage

NOTES: AoDai Dataset can be downloaded and put in the directories aodai/

1. Image Synthesis with SANA

Single image synthesis:

cd generation
python sana_inference.py --config configs/sana_config.yaml --sketch_path path/to/sketch.png

Batch synthesis:

cd generation
bash inference_multi.sh

2. Caption Generation with Qwen2.5

Generate captions for synthesized images using the provided notebook:

notebook/Qwen2.5_captions.ipynb

Or use the caption generation script directly (if available).

3. Triplet Formation

Process and form triplets from synthesized images and captions:

python process_triplets.py --input_dir aodai/ --output_file generated/output_triplet_final.json

4. Evaluation

Evaluate CIR models on the synthesized dataset: Each model defined in benchmark/ directories has its own evaluation script which has been fine-tuned and adapted to our VietFashion dataset. Fine-tuned model will be made public soon.

🏆 Research Contributions

1. Automated Triplet Synthesis: First pipeline combining diffusion spatial control (SANA-ControlNet) with LLM semantic distillation (Qwen2.5) for cultural garment domain-specific data generation

2. Domain-Specific Benchmark: Establishes the first comprehensive benchmark for fine-grained composed image retrieval in the “Áo Dài” (Vietnamese cultural garment) domain with 20,000 high-quality triplets

3. One-to-Many Mapping Design: Explicitly addresses false-negative supervision in composed retrieval through a structured Multi-Target Query Design ($1 \rightarrow 3$ mapping) that reflects real-world uncertainty

4. Multi-Modal Consistency: Ensures semantic alignment across sketch, image, and text modalities through structured attribute sampling and LLM caption distillation

5. Benchmark Evaluation: Comprehensive evaluation against state-of-the-art CIR models (Bi-Blip4CIR, CLIP4Cir, Pic2Word, SEARLE) demonstrating dataset utility

📚 Benchmarks

The project includes implementations and evaluations of:

• Bi-Blip4CIR: Bidirectional BLIP-based composed image retrieval
• CLIP4Cir: CLIP-based composed image retrieval with fine-tuning
• Pic2Word: Vision-language model for composed retrieval
• SEARLE: Scalable end-to-end architecture for image retrieval

Each benchmark includes pre-trained models, training and evaluation scripts in the benchmark/ directory.

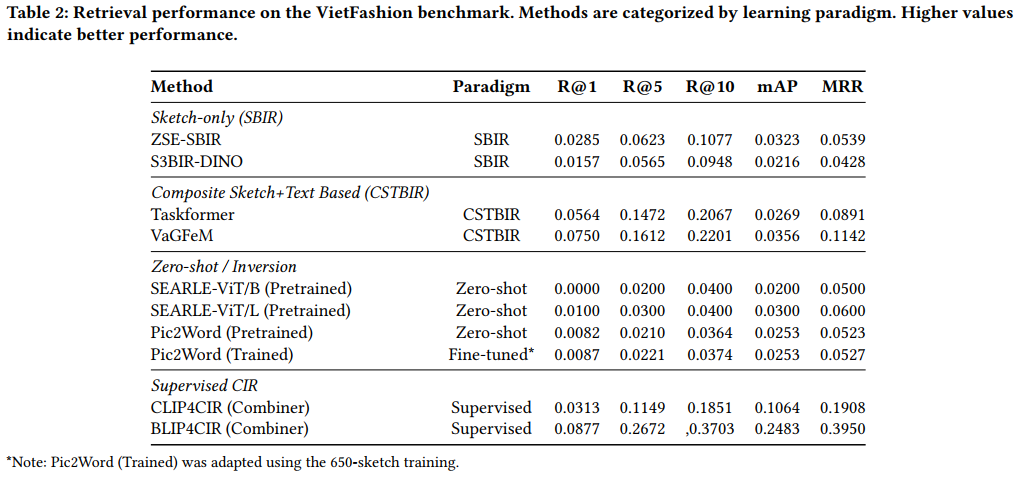

Result

� Citation

Coming Soon

📞 Contact

For questions, suggestions, or collaboration opportunities, please reach out to the project maintainers.

📖 References

• SANA: Efficient High-Resolution Image Synthesis
• Qwen2.5: Advanced Large Language Model
• CLIP4Cir: Composed Image Retrieval with Fine-tuning
• Composed Image Retrieval: A Review and Best Practices

📄 License

This project is licensed under the MIT License. See LICENSE file for details.

---

Status: Research Project
Last Updated: March 2026
Version: 1.0
